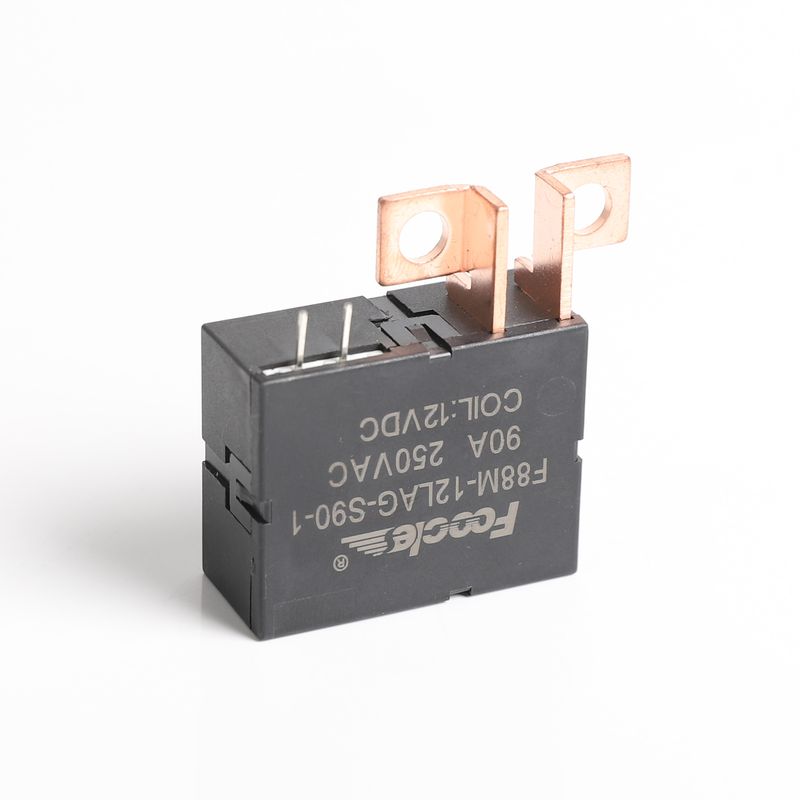

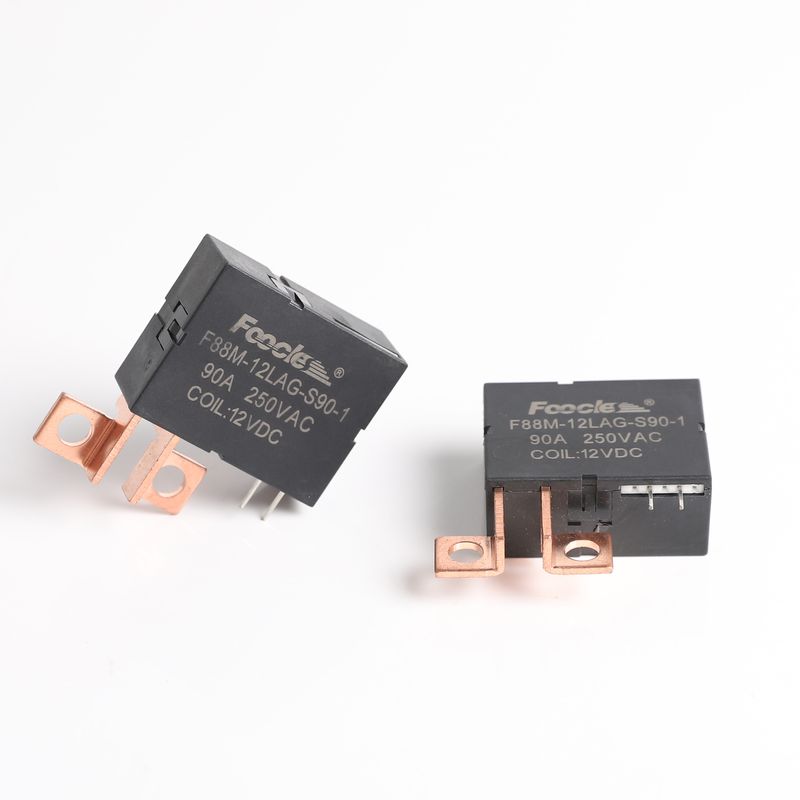

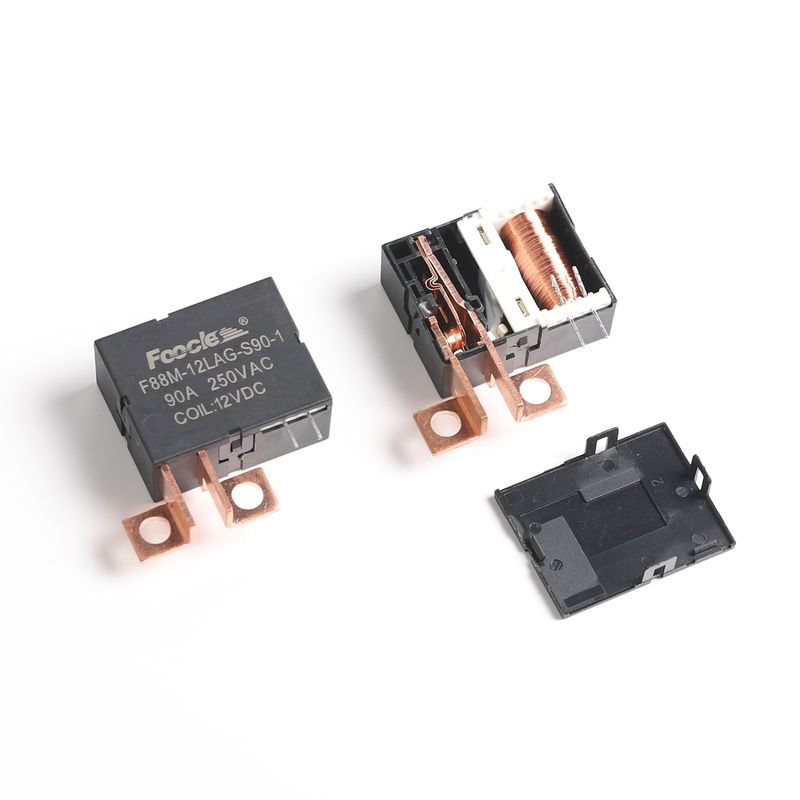

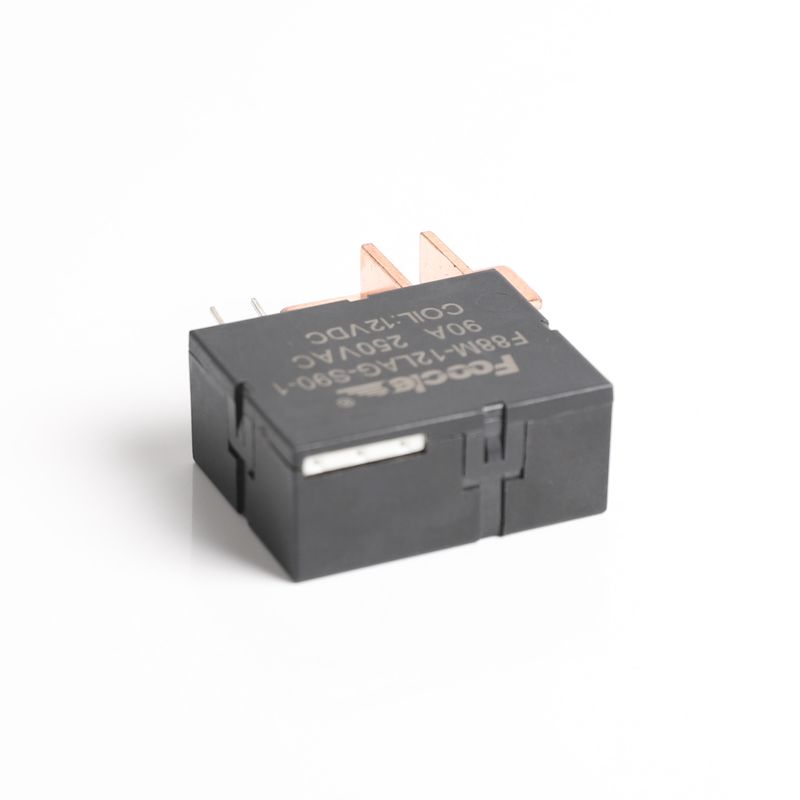

F88M-12LAG
Only pulse excitation, single, double coil, a manual switch control
負載能力強，可切換80A/250VAC 100A/250VAC
Strong load capacity, can be switched 80A / 250VAC
功耗低，體積小
Low power consumption, small volume
可根據客戶要求焊接附件
According to customer requirements for welded attachment
性能參數Performance parameters
|
吸合時間(額定電壓下) Response time |
20ms,Max |
|
|
釋放時間(額定電壓下) Release time |
20ms,Max |
|
|
絕緣電阻 Insulation resistance |
100MΩ(DC500V) |
|
|
介質耐壓 Dielectric withstanding voltage |
觸點與觸點間AC1500VAC,50/60Hz Min |
|
|
觸點與線圈間AC 4000VAC,50/60Hz Min |
||
|
抗振動Vibration resistance
|
耐久 Durable |
10~55Hz, 雙振幅1.5mm |
|
誤動作 False action |
10~55Hz, 雙振幅1.5mm |
|
|
抗沖擊impact resistance |
耐久 Durable |
10G Min |
|
誤動作 False action |
50G Min |
|
|
壽命 Life |
機械壽命Mechanical life |
100,000cycles |
|
電氣壽命Electr life |
10,000cycles |
|
|
環境溫度 Ambinet temperature |
-30～+70℃（不凝結） |
|
|
重量 Weight |
約 45g |
|
觸點參數Main contact parameters
|
觸點形式 Contact arrangment |
1A一組常閉 |
|
|
觸點材料 Contact material |
銀銅合金 |
|
|
接觸電阻 Contact resistance |
2mΩ Max(1A 24VDC) |
|
|
觸點負載 Contact load |
80A 250VAC |
90A 250VAC |
|
最大切換電壓 Max switching voltage |
250VAC |
250VAC |
|
最大切換電流 Max switching current |
80A |
90A |
|
最大切換功率 Max switching power |
20000VA |
22500VA |
|
最大短路電流 Max switching voltage |
2400VA 10ms |
2500VA 10ms |
線圈參數Coil parameters
|
額定電壓 VDC Rate Voltage |
線圈電阻±10% |
額定功率（W） |
過載電壓（V） |
吸合電壓（V） |
釋放電壓（V） |
脈沖寬度 |
||
|
單線圈 SingleCOil |
雙線圈 DoubleCOil |
單線圈 SingleCOil |
雙線圈 DoubleCOil |
|||||
|
5 |
25 |
12.5/12.5 |
1W |
2W |
≤150% |
≤75% |
≤75% |
≤60ms |
|
6 |
36 |
18/18 |
||||||
|
9 |
81 |
40/40 |
||||||
|
12 |
144 |
72/72 |
||||||
|
24 |
576 |
288/288 |
||||||
|
30 |
900 |
300/300 |
||||||
|
36 |
1296 |
648/648 |
||||||
